Solar panels are up!

30 08 2013

It took two months from signing the contract to getting our solar panels installed. A lot of stuff happened in between, so it’s not like anyone was slacking off in that time (that’s what you get for government [federal and state] intervention and approvals…). I took some progress photos today as the three guys did the installation. I didn’t think the installation would happen as the weather forecast for today was for storms, heavy rain, and strong — even gale force — winds.

But the guys turned up on time at 8 am (that got them 10 big gold stars from me, right there!) and got straight into the job. They were all done and about to drive out around 2:30 pm just as the storm hit, so they were able to work on the metal roof without having to deal with the slipperiness that rain would have caused. But they did have to deal with the wind, which fortunately was coming from the opposite direction to the side of the shed they were working on.

We have a BIG shed (about 6 m x 12 m), and there’s lots of room inside for things like the inverter. There’s also an electrical sub-board there too, so it was easy peasy for them to install the 20 panels on the shed. They installed them in landscape mode, not portrait like most installations, as the roof space on top of the shed meant they could get the 20 panels installed evenly and neatly that way.

Oh, and they earned another 10 gold stars for cleaning up after themselves (roof, driveway, inside the shed… though they lost a couple for not cleaning up after themselves in the shed’s toilet…), and some more gold stars for being friendly and polite and explaining everything I asked about (and anyone who knows me knows that I would have asked LOTS of questions!). And another set of gold stars for removing an old (unused) TV antenna from the shed that they said would cast a shadow on one panel in summer, reducing its efficiency — so even though removing that antenna wasn’t part of their brief, they did it for me at no extra charge. One final set of gold stars was for them not having to turn the power to the house off at ANY stage of the installation. The only power outage we had during this whole process was for about 10 to 15 minutes some weeks ago when Western Power swapped out the main electricity meter.

Even in the short time between the system being turned on this afternoon and the storm hitting, we were producing more electricity than we were using — and that was on quite an overcast day. Of course, the proof will be in the next couple of electricity bills, which should be substantially less than the current $250 to $300 per month that they are now.

Here are progress photos of the shed before installation, during installation, and when it was all done:

IMAG1004

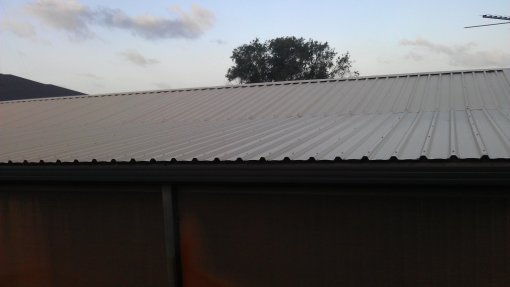

Eastern side of the shed first thing this morning; the main shed roof is the one at the greater angle — the lower sloped roof in front is the roof of the boat/caravan/car bay at the side of the shed

IMAG1005

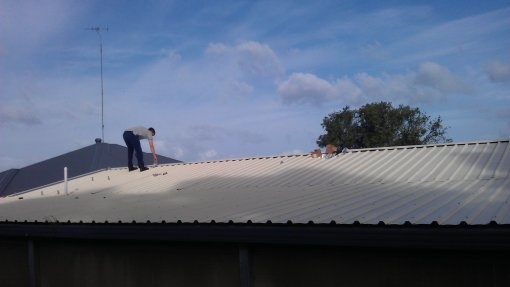

First of the rail holders getting installed. The weather was good then — just windy.

IMAG1006

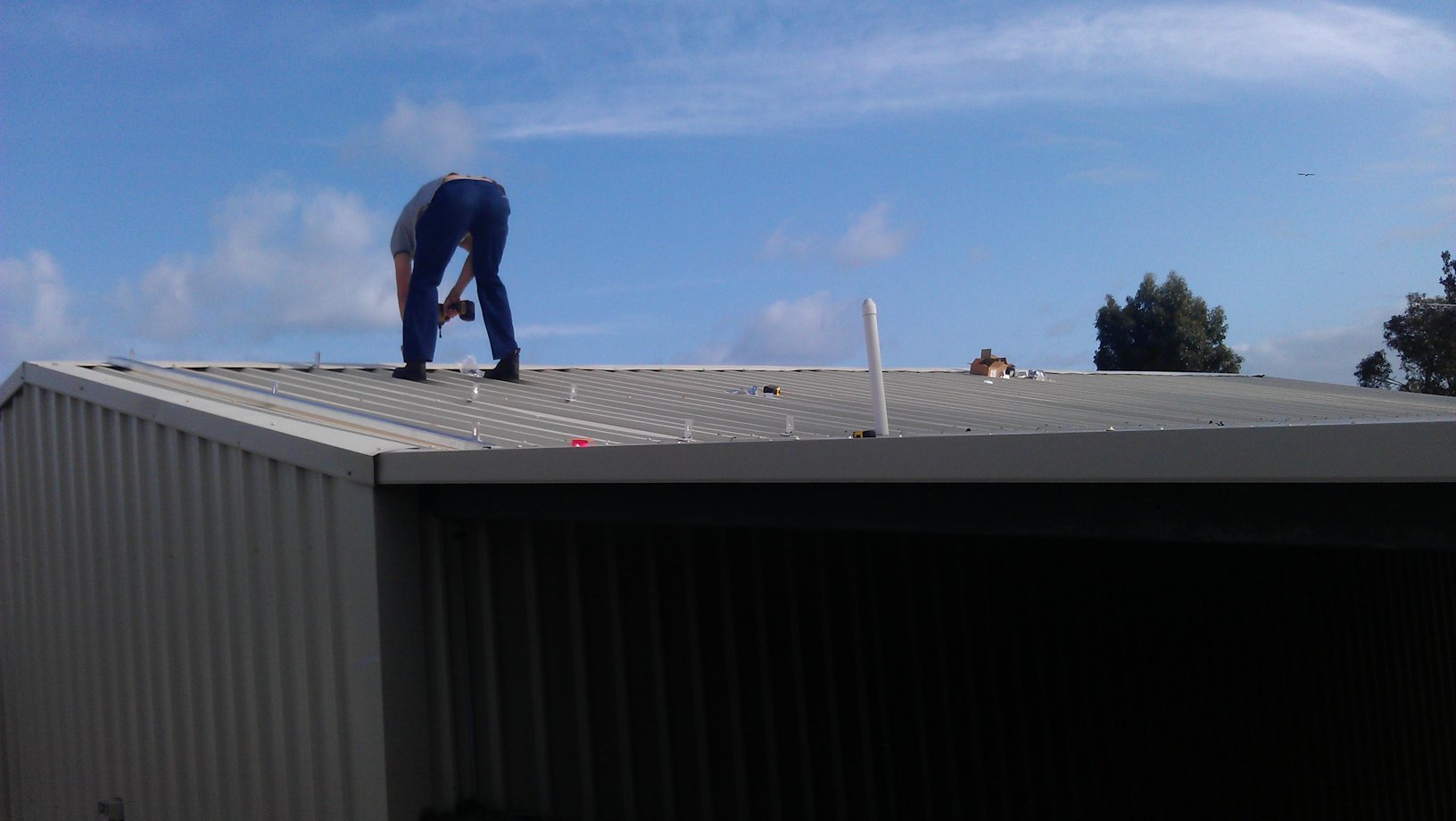

No tradie bum crack! Extra gold stars for that! Note the height of the vent pipe…

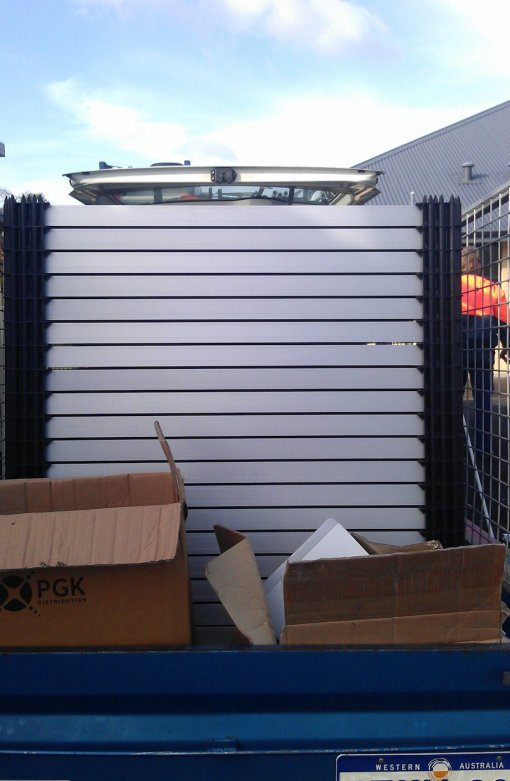

IMAG1007

German-made Conergy (division of Bosch) solar panels all stacked and ready for us

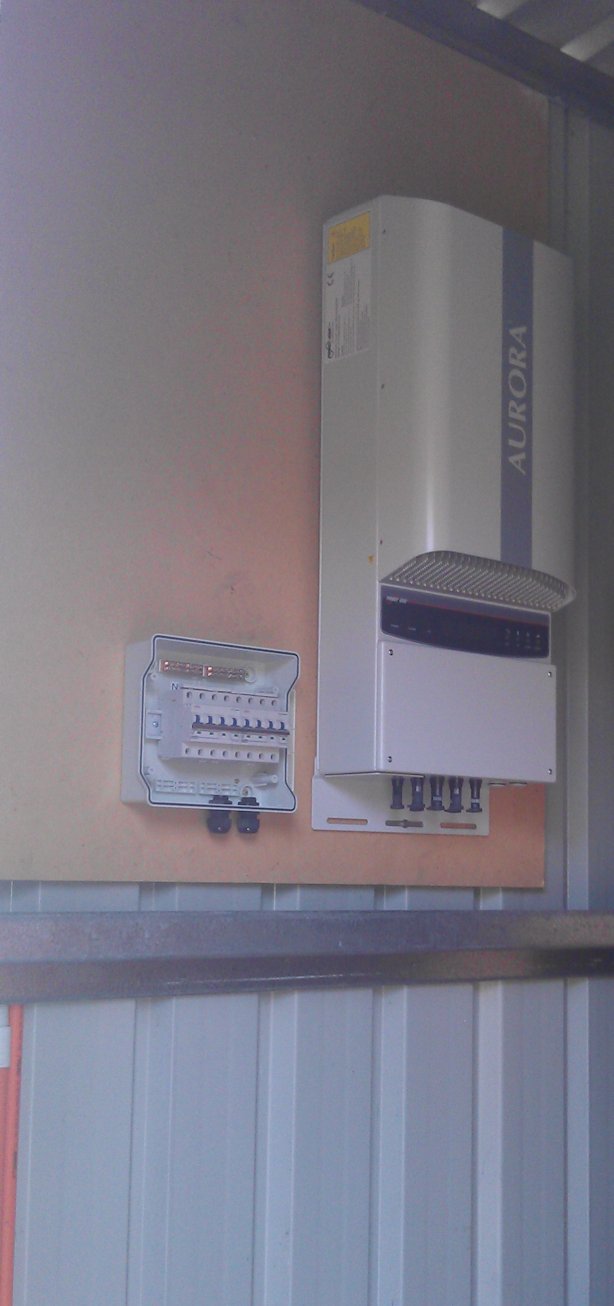

IMAG1008

Initial stage of the inverter installation. First they had to install the board it was mounted on…

IMAG1010

Now the rails. I like how they used fluoro coloured string for getting their lines straight – much easier to see than normal white or tan string

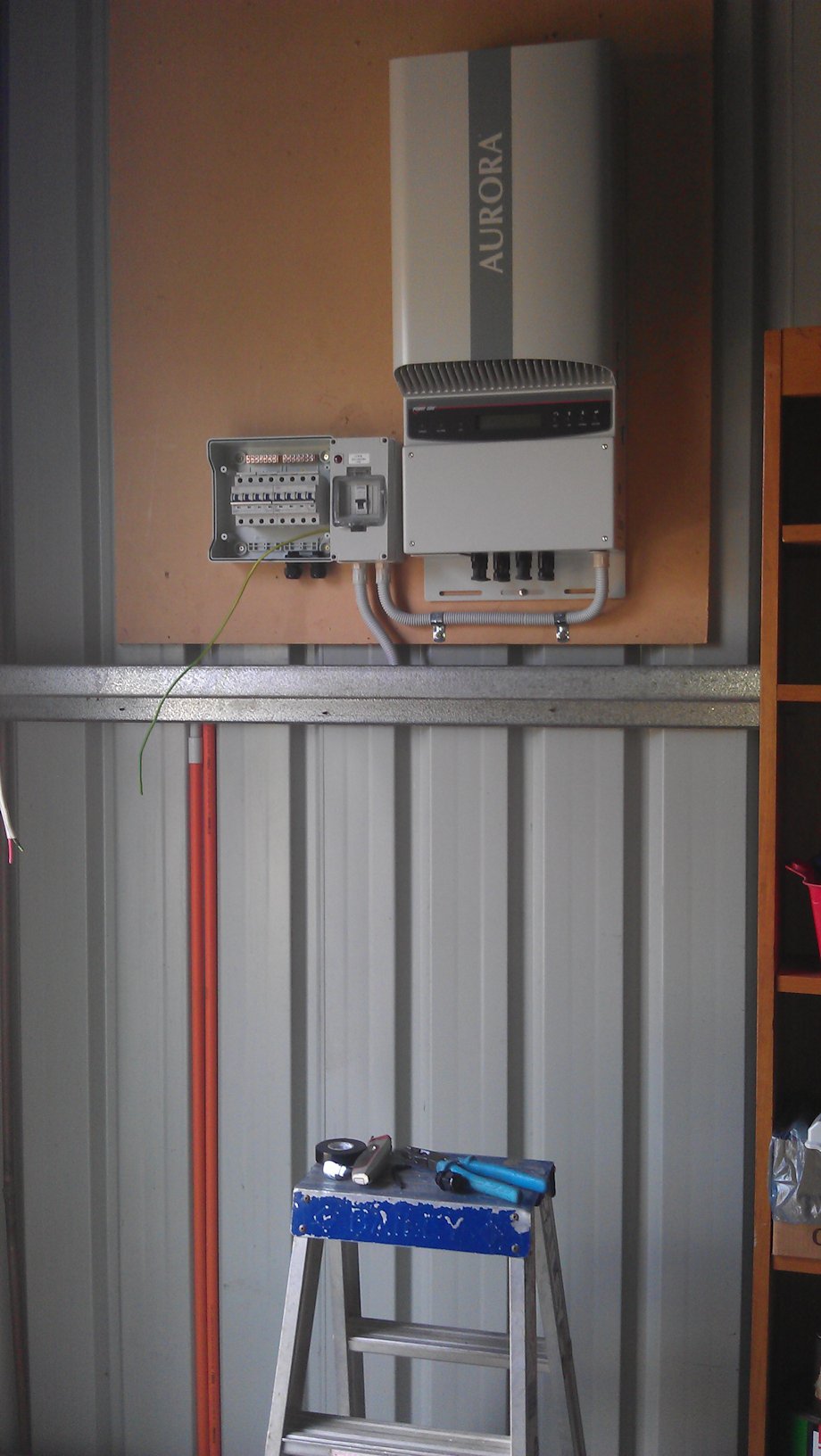

IMAG1011

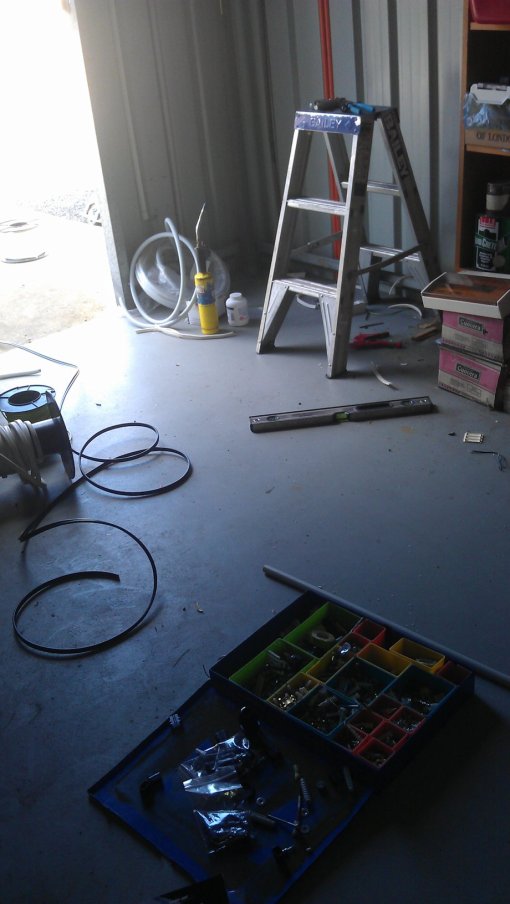

Progress inside the shed for the inverter installation

IMAG1012

IMAG1013

IMAG1014

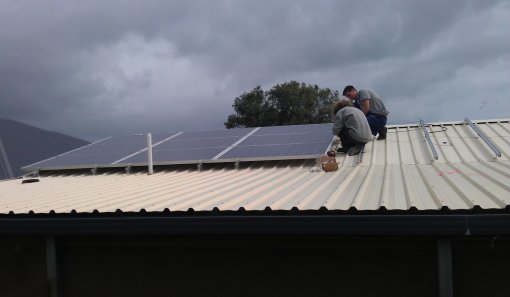

IMAG1015

The first nine panels are almost done. Note the threatening sky…

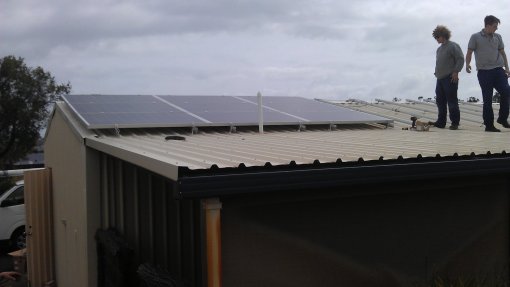

IMAG1016

Nine down, eleven to go… Can they get it done before the rain hits?

IMAG1017

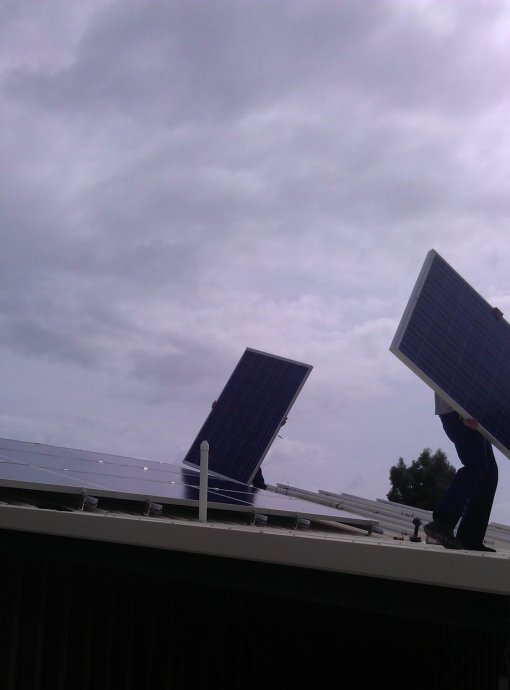

In this wind, solar panels are like sails…

IMAG1018

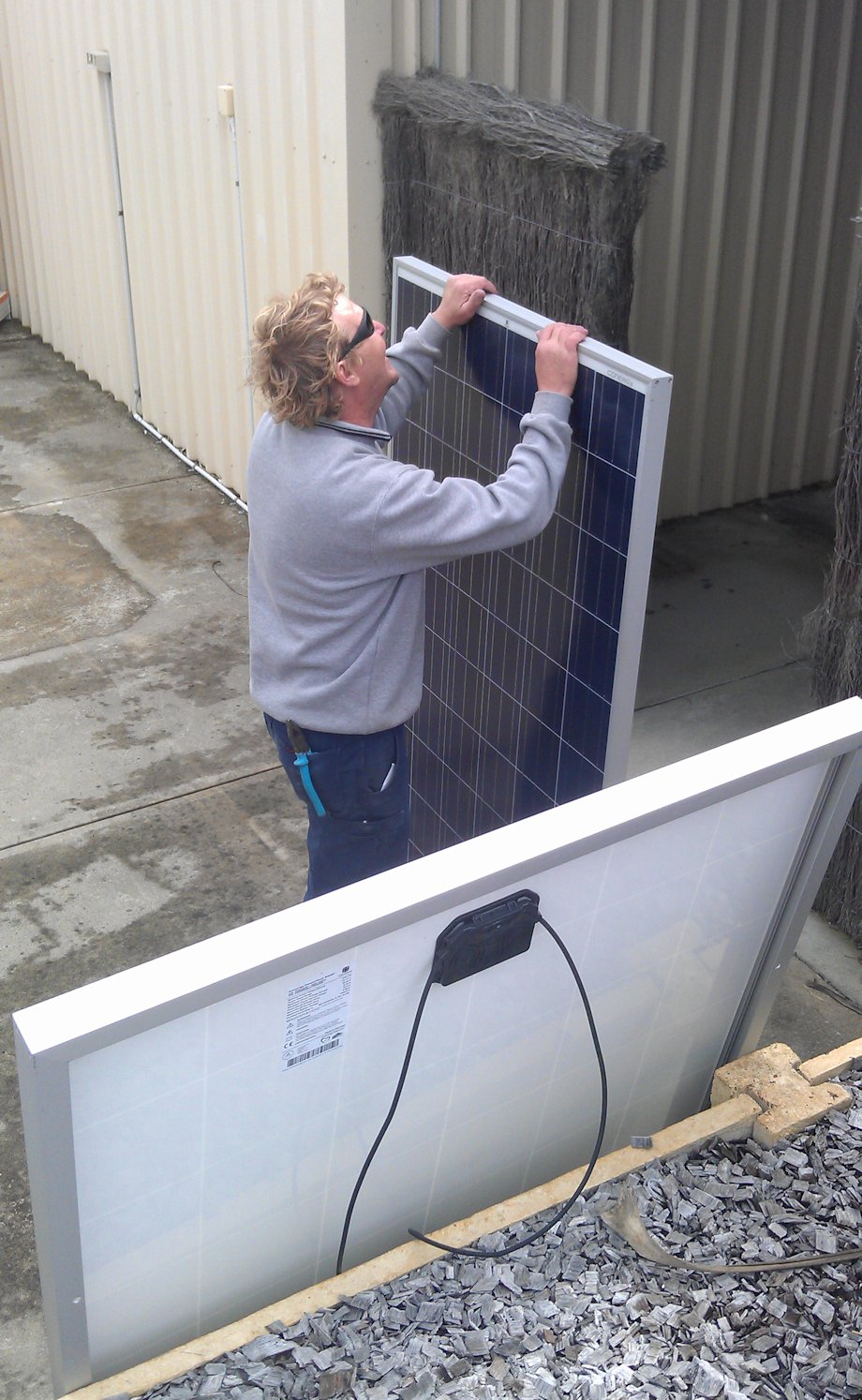

The boss passing up the panels to the young bucks on the roof. He did all the work inside and kept out of the weather 😉

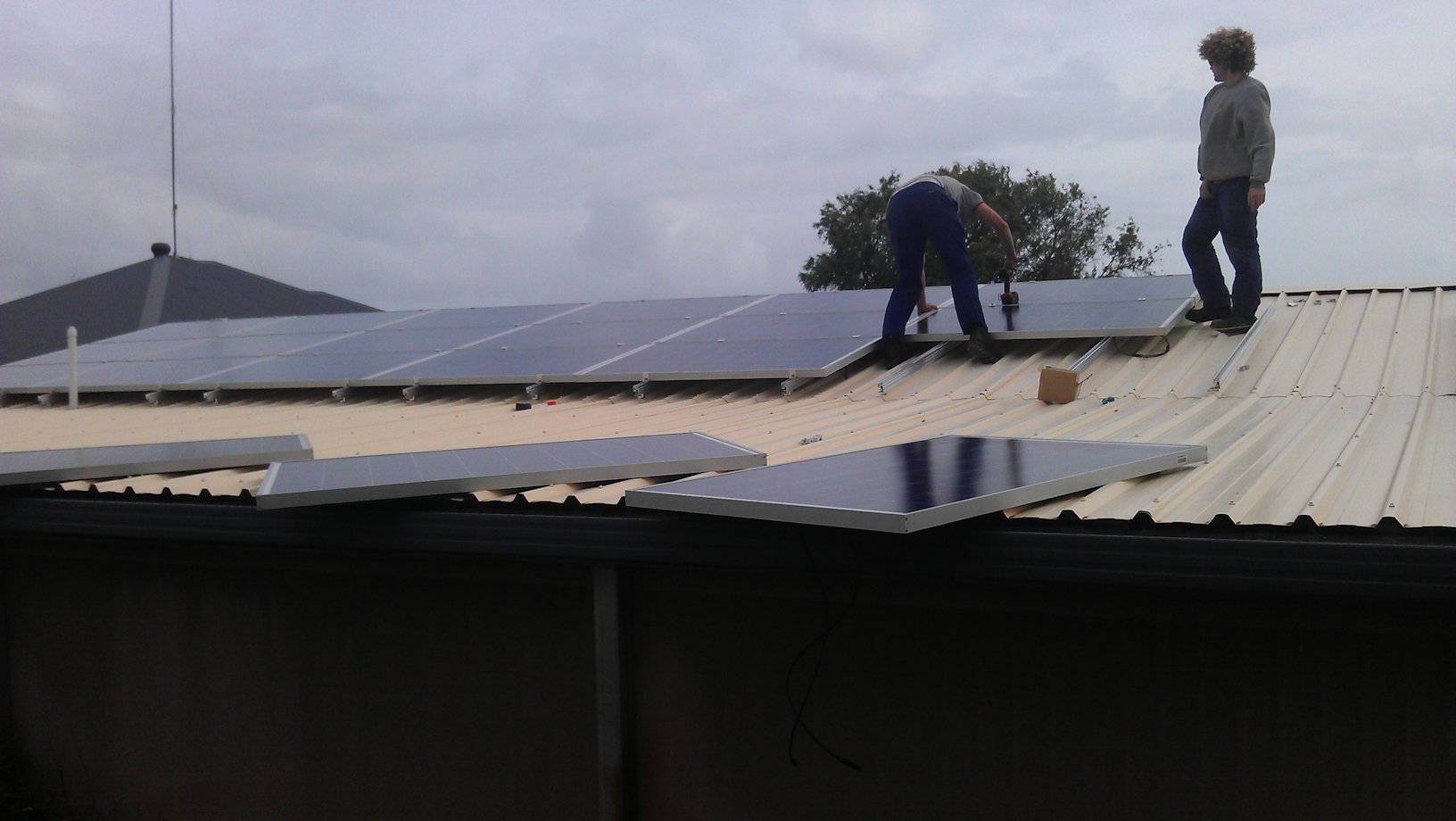

IMAG1019

17 down, 3 to go…

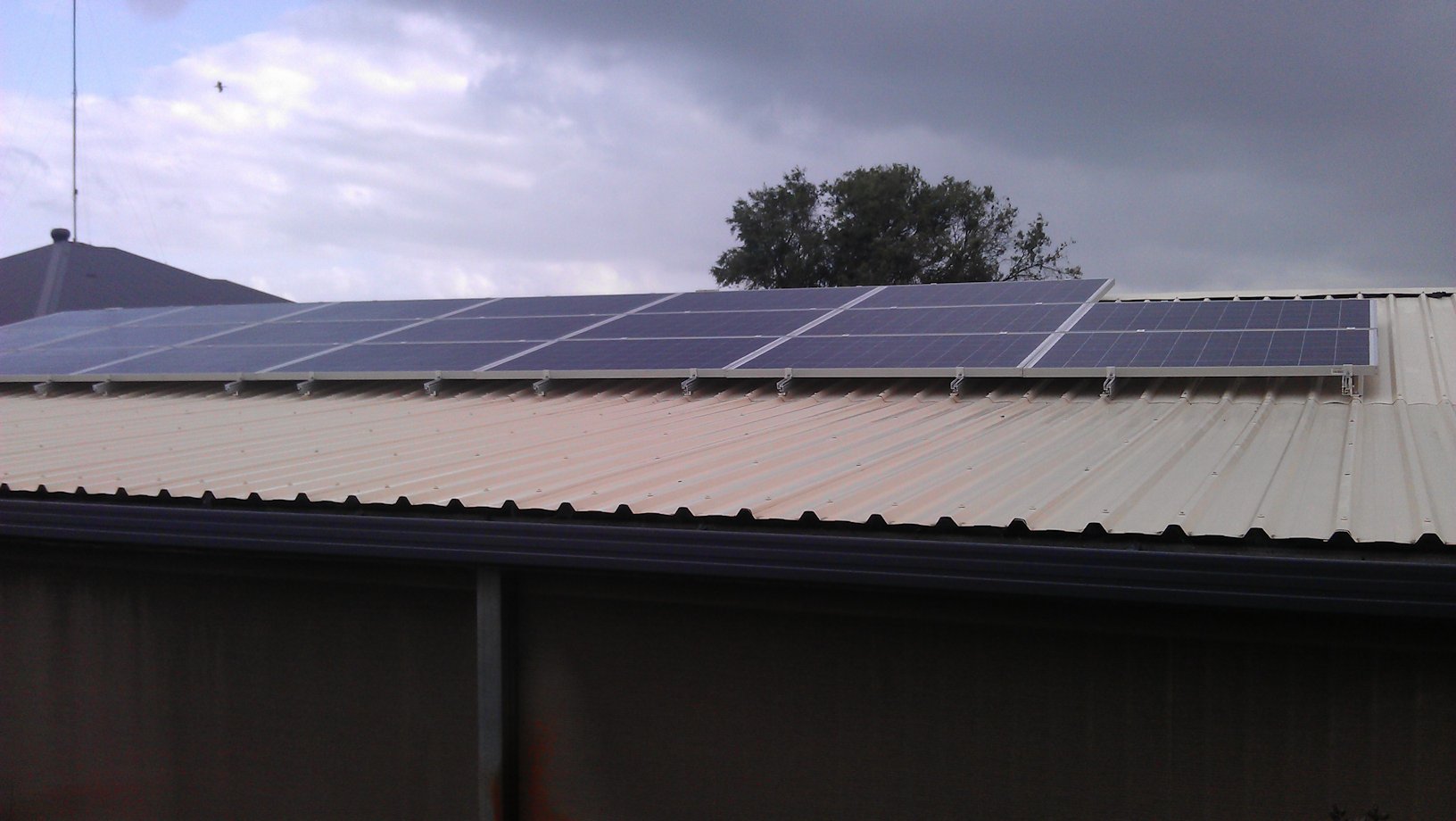

IMAG1020

All done!

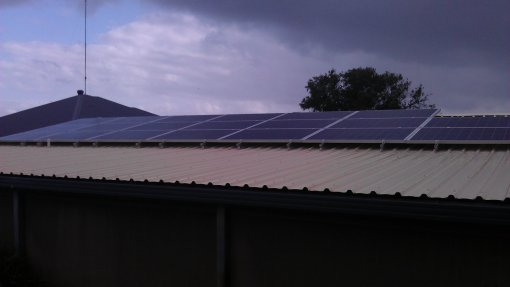

IMAG1021

And here comes the rain… Note the height of that vent pipe now — they cut it down so that it won’t cast a shadow on the panels thus reducing efficiency a tad (more gold stars)

Update (next day): Even with the gloomy, very overcast and stormy weather today, we’re currently producing twice what we’re using. Part of the deal was a ‘tracker’ than lets us know in real-time exactly how much electricity we’re using in the house at any moment, so I know what we’re using and can see on the inverter panel what we’re producing. For example: Usage = 1.4; production = 3.2. Of course, as the days get longer, less cloudy, and there’s more UV radiation, I expect that the production rate will go up even more.

Update 9 September 2013: So far our system has averaged 21 kWh per day, even though it’s only producing a maximum of about 3.4 (of 5) at the highest point in the day (that’s expected to increase to 5 or more in the next couple of months as the sun’s angle changes and the number of hours of daylight increases). I called the providers of the system and the chap on the phone answered heaps of my questions:

  • Yes, the solar system powers our house while it is producing power; any excess that we don’t use is sent to the grid. At night and when the output is low (overcast, low light), of course, we’re taking from the grid.
  • It’s far better for us to use power during the day when it’s effectively ‘free’ than at night. So, doing laundry, cooking etc. are all better done during the day. And in summer or the depths of winter, it will be better to turn on the air conditioning in the morning to cool/heat the house for ‘free’ and thus not expend as much energy getting hot house cool (or vice versa) later in the day. Working from home helps too, as our computer use will mostly be in daylight hours (though I have a server that’s on 24/7, so only some of its power usage will be ‘free’).
  • Over 12 months, a 5 kW system like ours should average 20 kWh (20 Western Power units) — some months will be much more, some much less, but on average 20 kWh per day is expected to be the average. Based on our pre-solar usage of around 31 to 34 units per day, that means that effectively about 2/3 of our daily power will be produced by the system. We may not use all those 20 units per day, of course, so there will still be a bill, which I was expecting — I knew the 5 kW system would not cover ALL our usage.
  • He also confirmed that hot days don’t equal best production. In fact, on very hot days the system is less efficient than on days around 25C. The system uses UV light, not heat to generate power.
  • Our optimum production time in summer is likely to be around 10 am as our system faces east and is at a low angle. So he encouraged us to do as many powered activities as possible in the mornings, if we could.
  • And no, we shouldn’t feel guilty any more about turning on the air con in summer or winter! That’s not to say we should waste power, but more that we should take advantage of the optimum times to use power so that we use as much as possible that’s ‘free’.

Update 31 August 2015: Two years on…

  • Total kWh produced = 14884, which averages out at 20.36 kWh per day throughout the year — rain, hail, or shine. Right on track with expectations.

Update 30 August 2016: Three years on…

  • Total kWh produced = 22243, averaging out at 20.1 kWh per day for the past 12 months. Again, on track with the expected average output. And this year, we’ve had quite a wet, cloudy winter — much more so than the past two years, so that may be why the average is down just a tad.
